Description
| Product type | Pipe fitting |
| Product name | BARRED TEE |
| Product Class | Lateral tee, Y tee, Reducer Tee, Straight Tee, Base Tee, Barrier Tee, Stengthen Tee |
| Produce thnologe | Samless, Welding |
| Size | Samless size from DN15-DN700; Welding size:DN200-DN2000 |
| Thickness | SCH10,SCH20,SCH30,STD,SCH40,SCH60,SCH80,SCH100,SCH120,SCH160,XS, XXS HIGH THICKNESS TO 80MM |
| Material | Materials :
* A234 – WPB WP5, WP9, WP11, WP22
* A420 - WPL3/ WPL6
* A403 – WP304/L; WP316/L
* A860-WPHY 42-46/52-60/65-70
Special Materials such as Monel, Inconel, Cu-Ni, Duplex SS etc are available on request |
| Standard | ASME B16.9 |
| Face | Coatings: Special Coating i.e. Cement Mortar Lining, FBE Coating, Galvanized (Hot Dipped Electro-Plating) etc. can be provided |
Stainless Steel Stub End, Carbon steel Cap, 45°Welded Elbow Exporter
WH-STEEL main products: stainless steel stub end, seamless stub end, 45°bend with 3LPE, seamless tee, carbon steel cap, barred tee, welded elbow, carbon steel reducer elbow, cap etc. All of them with the supper quality and great value
| Packaging Details: | Plywood case or fumigated woodern case or as per customers' requests. |
| Delivery Detail: | 2 - 10 days after receiving the deposit |
Specifications
Butt Weld Fittings ANSI B16.9 ASTM A420 WPL6 Barred Tee 6"X 6" SCH40
1. Size: 2 inch (DN50)
WT: Sch80S
2. Material: ASTM A182 F9
3. High quality, competitive price.
Base on excellente quality, satisfactory service and reasonable prcie, yaang's products have exported to USA, Russia, Korea, Brazil, Chile, Peru and MId East, etc.
Chinese barried tee supplier TOBO GROUP ASTM A182 F9 Barried Tee, BW, 150NB, SCH80S.
Chemical Composition % Of ASTM A420 WPL6
| Type | ASTM A420 WPL6 Barried Tee |
| Size | Seamless 1/2" To 48" Welded To 72" |
| Wall thickness | Sch5S-Sch160, XS,XXS |
| Standards | ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc |
| Material | Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, etc Carbon Steel: ASTM A234 WPB, WPC ASTM A105 WPHY 42, etc Alloy Steel: ASTM A234 WP1, etc Low Temperature: ASTM A420 WPL 1, etc Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760/S32550 |
| Surface treatment | Sand Rolling, Sand Blasting ,Acid Cleaning. |
| Packing | wooden case, pallet or as customers’ requirement |
| Applications | Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc |

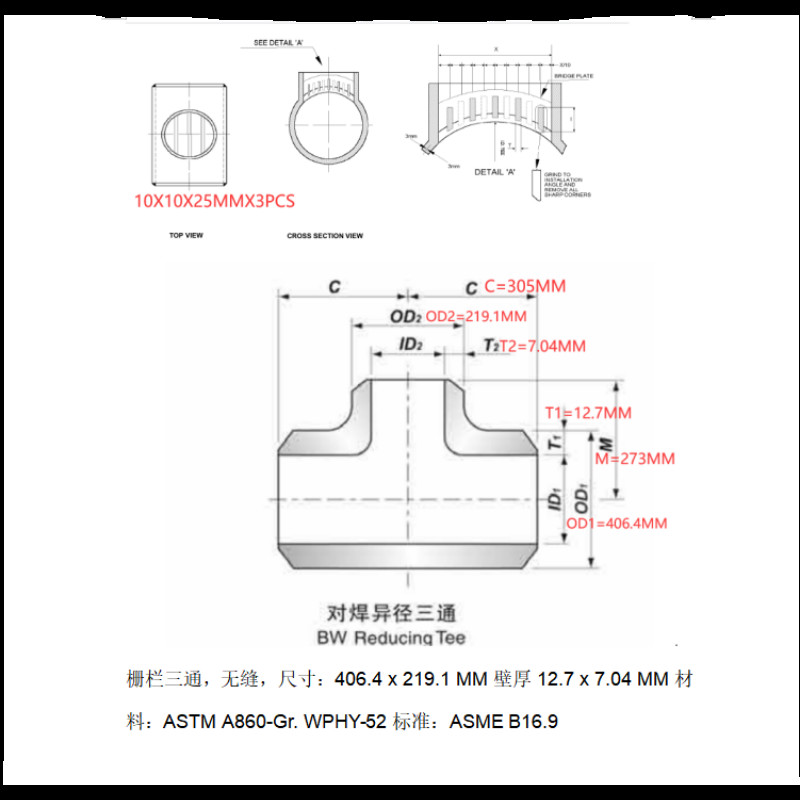

What is a barried tee
Barred tees are used in a pig launcher / receiver system and / or at branches in the pipeline to ensure the safe passage of a pig or sphere past the open branch area.
To complement our range of pigs and spheres pipeline engineering has the in-house engineering, manufacturing and testing capacity to produce piggable pipeline sphere tees and barred tees.
Our barred tees are manufactured to specific customer project specifications and International pressure vessel and piping codes such as ASME, PD5500. Our capacity ranges from 2" to 54", ANSI Ratings 150 to 2500 and API, using carbon, stainless and alloy steel materials. We also expertise in supplying tees for sour service environments, which require NACE and corrosion tested (HIC/SSCC) materials.
Barred Tees are of required pressure rating as per parameters for by-pass / branch connection into pipeline. This is to ensure smooth running of Pigs and avoid any by-pass of kicker products. Barred Tees are for long distance submarine oil and gas pipeline.we are one of the reliabl Barred Tee Suppliers in UAE
APPLICATIONS:
1. Pipe and Tubes for petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry
Other Features:
1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant
2) We also produce pipes with special specifications according to customers’ requirements
